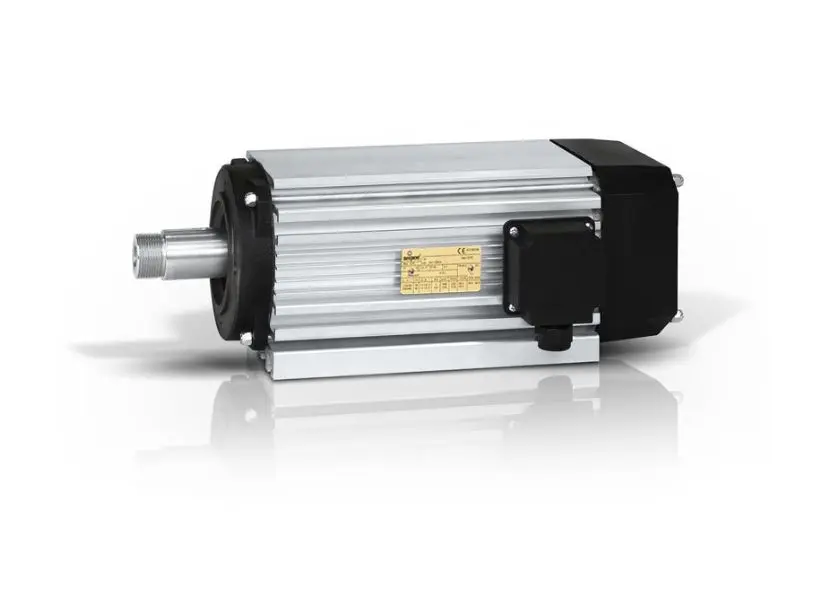

COMPACT EXTRUSED MOTORS
The Compact Asynchronous Electric Motors Seipee are designed to provide maximum efficiency in small spaces, thanks to their space-saving design and high torque density.
They are the ideal solution for machinery requiring low profile shapes and unusual orientations, such as industrial cutting machines, but they find application in many other contexts due to the possibility of customization.
These motors retain all the typical advantages of asynchronous motors: robustness, reliability, cost-effectiveness and ease of maintenance. Extruded aluminum construction ensures light weight, mechanical strength and excellent thermal dissipation.
Seipee provides tailored versions in form, function and performance, adaptable to the most specific needs of industrial customers. Prompt deliveries and always available after-sales service complete the offering.
COMPACT E-SERIES
The Compact E-Series electric motor is available in three-phase and single-phase versions, with low design and extruded aluminum housing, to ensure maximum adaptability to small spaces.
Designed with an externally ventilated, enclosed cage rotor, it is ideal for cutting machines and other applications that require high performance in small dimensions.
The E-Series is also available with customizations, including special shaft protrusions (blade holder, DIN 6499 elastic gripper attachment, etc.), to meet specific application needs.
◉ Powers: 0.25 - 15 kW
◉ Polarity: single (2, 4) or dual (2/4)
◉ Protection: IP54
◉ Insulation class: F
◉ Service: S1 and S6-60%
◉ Housing: extruded aluminum, compact and lowered shape
◉ Ventilation: external
◉ Options:
- C. parking brake.C. (HPE series)
- Shaft overhangs to customer design (blade holder, DIN 6499 elastic gripper attachment, etc.
