SINGLE-PHASE ASYNCHRONOUS MOTORS
Seipee’s JMM and JMML single-phase induction motors are the ideal solution for industrial and commercial applications that require reliability, ease of use, and compactness.
Manufactured to IE1 and IE2 efficiency standards with a dual capacitor, they guarantee excellent performance and operational safety, as well as low noise and vibration levels.
Thanks to their versatility and high starting torque, they are used in a wide range of sectors: small machine tools, compressors, pumps, fans, light automation systems, and equipment intended for continuous use.
Upon request, Seipee can design and manufacture custom versions, adapted both mechanically and electrically to the customer’s specific needs. Fast delivery and always-available after-sales service round out the offering.

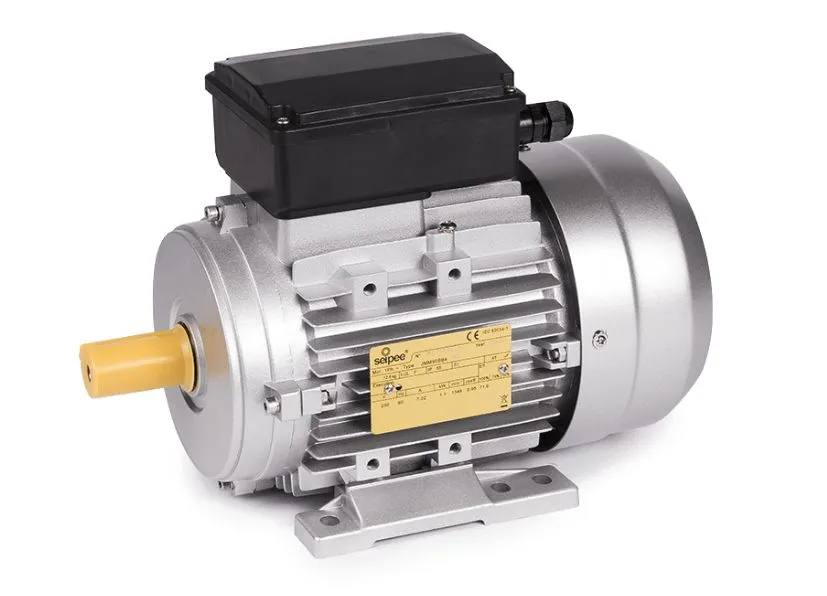

JMM Series
Single-phase asynchronous motor normalized in IE2 efficiency with double capacitor, for general use in industrial applications.
The die-cast aluminum housing with removable feet ensures light weight and mechanical strength, while the plastic terminal box facilitates easy installation and electrical connection.
Guarantees high starting torque and improve starting in heavy-duty applications.
◉ Unified sizes: from size 63 to 100
◉ Power range: 0.18 kW ... 3 kW
◉ Polarity: single, 2 or 4 poles
◉ Protection: IP55
◉ Insulation class: F
◉ Service: continuous S1
◉ Housing: die-cast aluminum with detachable feet
◉ Terminal box: plastic
TECHNICAL BOARD: pages 110 to 117 of the catalog
CERTIFICATIONS
